Drop Forgings: A Comprehensive Guide to Durable Metal Components
Drop forgings are a fundamental and highly reliable metal forming process used to create some of the strongest and most durable parts in machinery and equipment today. But how does this classic technique work, and what makes it so enduringly popular for demanding applications?
What Are Drop Forgings?
Drop forging is a manufacturing process where a heated metal billet is placed on a stationary lower die and is then struck by one or more rapid blows from a descending upper die. The force of the “drop”—which can be delivered by a gravity-fed hammer or a power-assisted press—causes the malleable metal to flow and fill the impression carved into the dies, taking the shape of the desired part.
This process is characterized by the use of closed dies and high-impact force, which results in a component with superior mechanical properties.
The Drop Forging Process: How It Works
The creation of a drop forging involves a series of precise steps:
Billet Heating: A metal billet (typically steel or aluminum) is heated in a furnace to a specific “forging temperature” to make it plastic and easy to shape.
Positioning: The heated billet is quickly transferred and positioned in the lower die cavity.
Forging: The upper die is dropped or forced down onto the billet with tremendous force. Multiple blows may be used to ensure the metal completely fills the die cavities.
Flash Formation: Excess metal, known as “flash,” is squeezed out between the die parting lines. This flash acts as a relief valve, ensuring maximum pressure is applied to fill the entire die.
Trimming: The forged part is then moved to a trimming press, where the excess flash is cleanly sheared off.
Finishing: Secondary operations like shot blasting, heat treatment, or machining may be performed to meet final specifications.
Key Benefits and Characteristics of Drop Forgings
Why choose drop forgings? The advantages are clear and significant:
Exceptional Strength: The impact force refines the metal’s grain structure and aligns it to the part’s shape (grain flow), resulting in high impact and fatigue strength.
High Reliability: The uniform microstructure and absence of internal voids or porosity make drop forgings incredibly reliable for critical, high-stress components.
Good Dimensional Accuracy: While not always as precise as precision die forging, drop forgings offer good dimensional consistency and complex geometries far superior to casting.
Cost-Effectiveness: It is a highly efficient process for medium to high-volume production runs, offering a favorable cost per part.
Material Versatility: A wide range of ferrous and non-ferrous metals can be drop forged, including carbon steel, alloy steel, stainless steel, and aluminum.
Industries and Applications: What Are Drop Forgings Used For?
Drop forgings are the backbone of many heavy-duty industries. Common applications include:

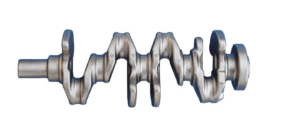

Automotive: Crankshafts, connecting rods, axle beams, and transmission gears.
Agriculture: Plowshares, tractor components, and harrow teeth.
Hardware & Tools: Wrenches, hammers, and crowbars.
Oil & Gas: Valve bodies, drill bit components, and wellhead parts.
Aerospace & Defense: Landing gear components, structural levers, and armored vehicle parts.
General Industrial: Gears, levers, and high-strength fasteners.
Who is the Ideal Customer for Drop Forgings?
Drop forgings are ideally suited for clients with specific requirements:
Need for Superior Strength: Customers who cannot compromise on the mechanical integrity and durability of their components.
Medium to High Volume Production: The initial cost of die creation is offset over a larger production run.
Complex but Not Ultra-Precise Geometries: When a part’s shape is too complex for simple machining but may still require some final machining for critical tolerances.
Applications in Demanding Environments: Parts subject to high stress, impact, or fatigue.
We Provide Custom Drop Forgings to Your Requirements
we specialize in delivering high-quality custom drop forgings that meet the exact needs of our clients. We understand that every application is unique, and we have the expertise to guide you from design to finished product.
We can manufacture drop forgings according to your specific requirements. Whether you have detailed drawings, a sample part, or a concept, our engineering team will work with you to select the right material and process to create a forging that delivers unmatched performance and value.
Ready to leverage the strength and reliability of drop forgings for your products? Contact us today to discuss your project and receive a competitive quote.
