Flange Forgings
What are Flange Forgings?

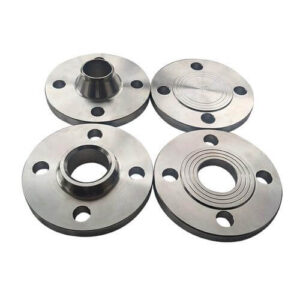

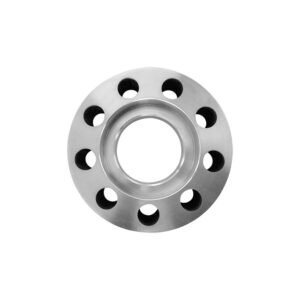

Flange Forgings refer to flanges that are manufactured through the industrial forging process. Forging involves shaping metal using localized compressive forces, typically delivered by a hammer or press. This process creates a flange with a superior grain structure, enhanced mechanical properties, and greater integrity compared to cast or plate-cut flanges. Flange Forgings are critical components used to connect pipes, valves, pumps, and other equipment to form a piping system, allowing for easy assembly, disassembly, and maintenance.
Materials for Flange Forgings
We produce Flange Forgings from a wide range of materials to meet various operational demands, including pressure, temperature, and corrosion resistance. Common materials include:
Carbon Steel: ASTM A105 (for high-temperature service), A350 LF2 (for low-temperature service). Ideal for general-purpose applications.
Stainless Steel: ASTM A182 F304/304L, F316/316L. Excellent for corrosion resistance in chemical and marine environments.
Alloy Steel: ASTM A182 F11, F22, F91. Used for high-temperature and high-pressure services, common in power plants.
Duplex & Super Duplex Stainless Steel: ASTM A182 F51, F55. Offer high strength and excellent resistance to stress corrosion cracking.
Nickel Alloys: Inconel, Monel, Hastelloy. Used in extremely corrosive and high-temperature environments.
Key Features and Advantages of Flange Forgings
Flange Forgings offer significant advantages over other manufacturing methods:
Superior Strength & Toughness: The forging process refines the metal’s grain structure, resulting in high strength and impact resistance.
Enhanced Structural Integrity: Forgings are free from porosity, cavities, and inclusions common in castings, ensuring reliability.
Excellent Fatigue Resistance: They can withstand high cyclic stress and pressure fluctuations without failure.
Good Dimensional Stability: Forgings maintain their shape and size under extreme loads and temperatures.
Long Service Life: The superior metallurgical properties translate into increased durability and a longer operational lifespan.
Industries and Applications of Flange Forgings
Flange Forgings are indispensable in industries where safety, pressure, and reliability are paramount:
Oil & Gas: Used in pipelines, offshore platforms, refineries, and petrochemical plants.
Power Generation: Critical in both conventional (coal, gas) and nuclear power plants for high-pressure steam lines.
Chemical & Petrochemical: Employed in processing equipment handling corrosive fluids and high pressures.
Water Treatment: Used in large-diameter piping systems for water distribution and treatment facilities.
Shipbuilding & Marine: Applied in seawater cooling systems, ballast lines, and offshore applications.
Heavy Machinery & Construction: Used in hydraulic systems and other high-pressure fluid power applications.
The Forging Process for Flange Forgings
The manufacturing of Flange Forgings typically involves several key steps:
Material Selection: Choosing the appropriate raw material billet or bar based on the required specifications.
Heating: The material is heated to a precise forging temperature in a furnace to make it malleable.
Forging: The heated metal is shaped into a rough flange form using a powerful press or hammer. Common methods include open-die forging or closed-die forging for more complex shapes.
Heat Treatment: The forged flange undergoes heat treatment (normalizing, quenching & tempering) to achieve the desired mechanical properties and relieve internal stresses.
Machining: The flange is precision-machined to meet exact dimensional tolerances, face finish, and bolt hole patterns as per ASME, ANSI, DIN, or other standards.
Testing & Inspection: Each flange undergoes rigorous Non-Destructive Testing (NDT) like Ultrasonic Testing, Magnetic Particle Inspection, and dimensional checks to ensure quality.
Custom Flange Forgings According to Your Requirements
We understand that standard solutions are not always sufficient. We specialize in providing custom Flange Forgings tailored to your specific needs. Our engineering team works closely with you to deliver forgings that meet your exact requirements for:
Material Grade: Specific alloys for unique corrosion or temperature needs.
Dimensions & Standards: Non-standard sizes, pressure ratings (e.g., Class 150, 300, 600, etc.), or custom bolt patterns.
Special Features: Unique bore sizes, extended necks, or specific heat treatment protocols.
Certification: Full traceability and material certifications as per your project specifications.
Contact us today to discuss your project. Let us provide you with high-quality, reliable, and custom-forged flange solutions.
