loose tooling die forging customized
Table of Contents

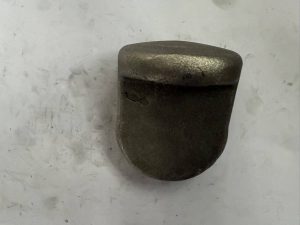

What is loose tooling die forging customized
loose tooling die forging customized is a method of die forging, which adopts a non-fixed die production method and is suitable for mass production of small die forging parts. Loose tooling die forging customized can also realize mass customization production.

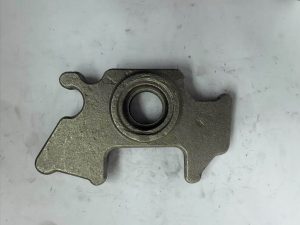

Features of loose tooling die forging customized
Compared with traditional molds, the cost of loose tooling die forging customized is relatively low, and the mold can also be made of H13 material. The forging materials of loose tooling die forging customized can be diverse, such as carbon steel, alloy steel, titanium alloy, and customized services can be realized according to customer requirements. The size, thickness, hardness, etc. of forged parts can be adjusted.

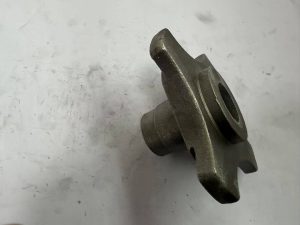

Loose tooling die forging customized process
Loose tooling die forging customized process The first step is to design the mold according to the customer’s drawings. The design of loose tooling die forging customized molds can be designed to be mobile, which is lower than the cost of closed die forging, and the mold forming time is also very short, which takes about 5 days.
The second step is blanking forging. The material is automatically cut and blanked by the blanking machine. After cutting, the blank is directly heated and then forged. Forged parts are forged by a press (generally a small press below 700 tons) or a forging hammer, and then formed and produced.
The third step is to remove burrs, trim edges, and sandblast to make the appearance of loose tooling die forging customized parts look newer, cleaner, and neater. Customers also choose heat treatment to increase the hardness of forged parts.
The machining tolerance of loose tooling die forging customized parts is ±0.5–1.5 mm. The minimum order quantity is about 500 pieces.
What can loose tooling die forging customized be customized?
Loose tooling die forging customized is generally small batches, and the weight of forged parts is 1KG-10KG. Luoyang Forging can forge a lot of track rollers, turret bases, impellers, valve bodies, high-pressure sealing rings, gearbox flanges, variable pitch bearing seats, valve bodies, drill adapters, racing connecting rods, hydraulic valve bodies, etc. for customers.
